Have you ever walked into a room and immediately felt delighted by the flood of natural light? Are you tired of relying on artificial light during the day? What if you could transform a dark, gloomy space into a bright, welcoming haven with a home improvement project?
Installing a skylight on a tile roof may seem like a daunting task, but it’s more possible than you think. Whether you’re a confident DIYer or want to understand the process before hiring a professional, this guide will tell you everything you need to know. From understanding tile compatibility to weatherproofing your new skylight, we’ve got you covered.
In this article, you’ll discover the step-by-step process of installing skylights on tiled roofs, learn about council approval requirements in Australia, and get practical tips to avoid common mistakes. By the end, you’ll have the knowledge to make informed decisions about bringing more natural light into your home.
What is a tiled roof skylight?

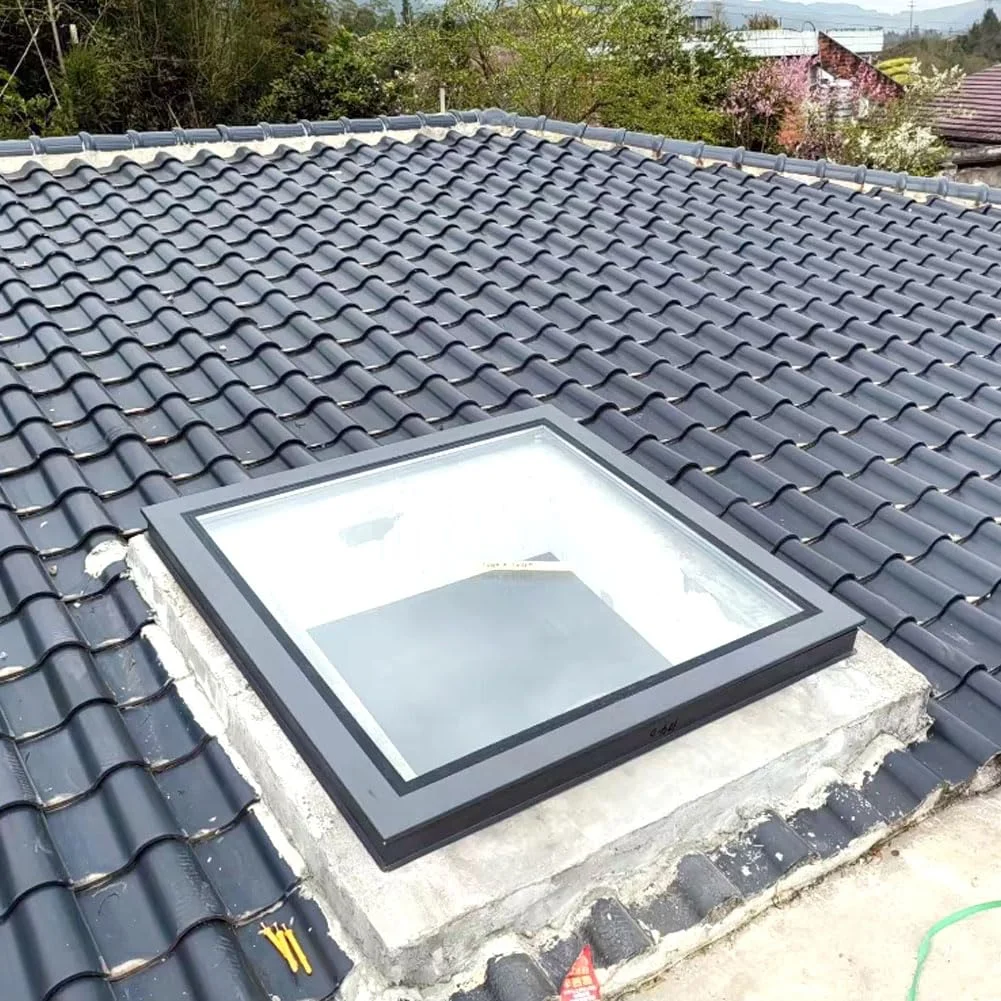

Tiled roof skylights are essentially a window installed into your roof, specifically designed to work with tiled roofing materials. These skylights come in a variety of styles, each suited to different needs and preferences.
Types of skylights suitable for tiled roofs
The most common options include fixed skylights, vented skylights, and tubular skylights. Fixed skylights are sealed units that let light in without opening. Ventilated models can be opened manually or electronically, allowing fresh air to circulate. Tubular skylights use reflective tubes to diffuse light into small spaces such as hallways or bathrooms.
Fixed vs. Ventilated Skylight: Which One is Right for You?
If your main goal is simply to add light, a fixed skylight is cost-effective and requires little maintenance. However, if you want to improve air flow and reduce reliance on air conditioning during Australia’s hotter months, a vented skylight is worth the extra investment. Consider the purpose and climate of your room when making this decision.
Can you install a skylight on a tile roof?
Absolutely! Tiled roofs are indeed suitable for skylight installation, although there are some factors to consider first.
Understanding roof pitch and tile compatibility
Most skylights work best on roofs with a pitch between 15 and 85 degrees. The angle of your roof affects water drainage around the skylight, so it’s important to get it right to prevent leaks. Check your skylight manufacturer’s specifications to confirm compatibility with your roof pitch.
Common Tile Types and Installation Considerations
Concrete and terracotta tiles are most common in Australian homes, and both work well with skylights. The key is using the correct flashing kit designed for your specific tile profile. Flat tiles require different flashing than profiled or interlocking tiles, so make sure you have the correct components before you begin.
Planning Your Skylight Installation
Proper planning is half the battle when it comes to successful skylight installation. Rushing through this stage often leads to costly mistakes down the track.
How to choose the right location
Think about where you want to bring light throughout the day. South-facing skylights provide consistent, diffused light, while north-facing skylights provide more direct sunlight and warmth. Avoid installing skylights where trees may drop leaves or debris on them.
What size skylight do I need?
As a general rule, your skylight should take up about 5% of the floor area for rooms with existing windows or 15% for rooms with no windows. For a 20 square meter bedroom, this means approximately 1 square meter of skylight.
Checking Structural Constraints
Before cutting your roof, locate any rafters, trusses, electrical wires or plumbing that are in the way. Use a stud finder and check through both the interior and ceiling cavities. It is much easier to slightly rearrange your skylight than to deal with structural problems midway through installation.
Having the right gear ready before you start will make the process much easier.
Tools Required for DIY Installation
To cut the roof opening you will need a reciprocating saw or circular saw, a drill with various bits, a tape measure, chalk line, spirit level and safety equipment including goggles, gloves and a safety harness. A helper is also invaluable for delivering equipment and materials to the ground.
Skylight Flashing Kits and Weatherproofing Supplies
Every skylight requires the proper flashing kit designed for your tile type. You will also need roofing sealant, waterproof membrane and potentially some replacement tiles if the existing tiles break during removal. Quality weatherproofing materials are essential—this is not the place to cut corners.
Step-by-Step Guide to Installing a Skylight on a Tiled Roof
Now for the exciting part. Here’s how to tackle the skylight installation process from start to finish.
Step 1: Marking and Measuring the Opening
Mark the corners of your opening by hammering nails into the ceiling, from the inside of the ceiling cavity. On the exterior of the roof, connect these points using a chalk line. Double-check your measurements—measure twice, cut once.
Step 2: Safely Removing Ceiling Tiles
Working from top to bottom, carefully lift and remove the tiles around your marked area. Store the tiles safely as you will need them later. Take your time here to avoid breaking tiles unnecessarily.
Step 3: Cutting the Roof Opening
Cut the roof foundation and battens using your reciprocating saw. If you need to cut rafters, install headers and trimmers first to maintain structural integrity. Always work on a dry day to prevent moisture from entering your roof cavity.
Step 4: Installing the Skylight Frame
Place the skylight frame into the opening and check its level. Secure it to the surrounding rafters according to the manufacturer’s instructions, making sure it is square and properly aligned.
Step 5: Fitting the Flashing Kit
Install the bottom flashing first, then the side flashing, and finally the top flashing. Each piece must overlap correctly to direct water away from the skylight. This is where many DIYers make mistakes, so follow the instructions carefully.
Step 6: Securing the Skylight and Replacing the Tiles
In place of the flashing, install a skylight glazing unit. Then carefully replace the tiles around the flashing, cutting tiles as needed to fit snugly over the skylight frame.
Step 7: Sealing and Weatherproofing
Apply roofing sealant around all flashing edges and joints. Check for any gaps where water could enter. A perfect seal now prevents headaches later.
Do I need council approval in Australia?
It depends on where you live and the scope of your project.
Building Regulations and Permit Requirements
In most Australian states, skylight installation is considered an exempt development if it does not significantly alter the roof structure. However, if you are cutting rafters or trusses, you will probably need approval. Heritage-listed properties also have additional requirements.
When to Consult a Licensed Professional
If your project requires structural modifications, or if you are unsure about the regulations in your area, consult a licensed builder or your local council. Getting the proper endorsements protects you legally and ensures that your home insurance remains valid.
How much does skylight installation cost?
Budgetary considerations play a big role in deciding between DIY and professional installation.
Factors Affecting Pricing
Skylight prices range from $300 for basic stationary models to more than $2,000 for premium vented units. Installation costs vary depending on roof access, type of tile, and whether structural work is needed. A flashing kit adds an additional $150-$400.
DIY vs Professional Installation
A professional skylight installation typically costs between $800 and $2,500 for labor. DIY can save you this expense, but keep in mind the value of equipment rental and your time. Plus, professionals also offer a warranty on their workmanship—something you can’t do yourself.
Common Mistakes to Avoid
Learning from the mistakes of others can save you significant grief.
how to stop leaks
Leaks are the biggest complaint with skylights, usually caused by improper flashing installation. Always use a manufacturer-approved flashing kit, install components in the correct order, and don’t skimp on sealant. Test with a hose before completing the job.
Ensuring proper insulation and ventilation
Poor insulation around your skylight shaft causes condensation and heat loss. Line the shaft with insulation batt and install a vapor barrier. Adequate ventilation in the roof cavity also prevents moisture build-up.
How long does installation take?
For straightforward skylight installation without structural modifications, experienced DIYers can complete the job in one to two days. Professional installers often complete the job within four to six hours. Allow extra time if you’re working alone or tackling your first skylight project.
maintain your skylight
A little ongoing care will keep your skylight looking beautiful for years.
Clean the glass inside and out every few months using a soft cloth and mild detergent. Inspect seals and flashing annually, especially before wet weather. Pay attention to condensation between the glazing layers, cracks in the seal, or water stains on your roof – these signal repair is needed.
Installing Tiled Roof Skylight is an award-winning project that transforms your living space with natural light and better ventilation. Although it requires careful planning and attention to detail, the results are absolutely worth the effort.
The key to success lies in thorough preparation, using quality materials, and not rushing the weatherization phase. Whether you tackle the project yourself or hire a professional, understanding the process helps you make better decisions and get a result you’ll enjoy for decades.
So, are you ready to light up your home? With this guide in hand, you have everything you need to begin your skylight installation journey. Good luck, and may the days ahead be lighter, brighter!
